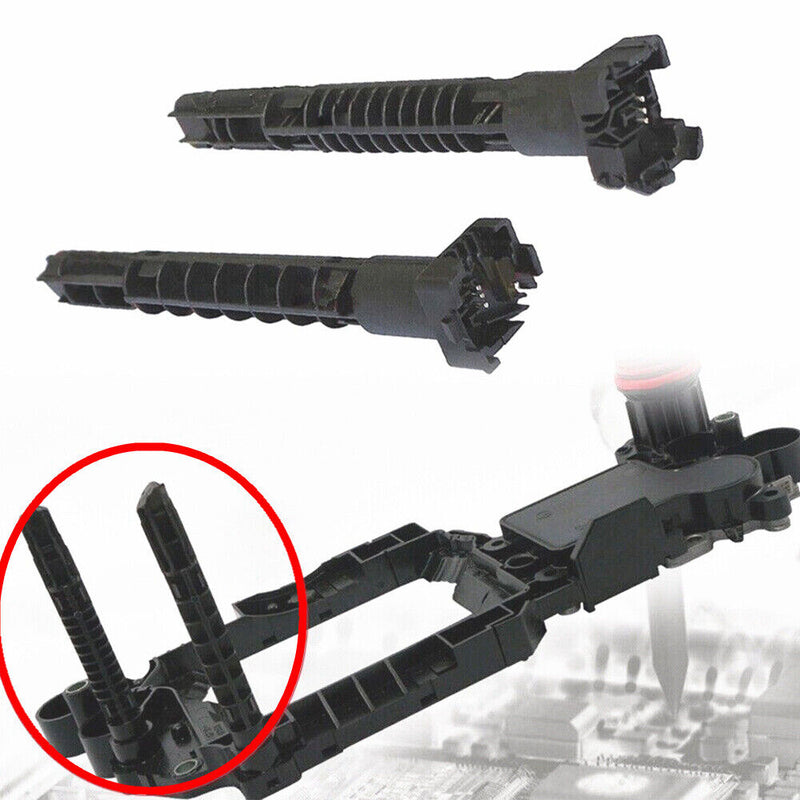

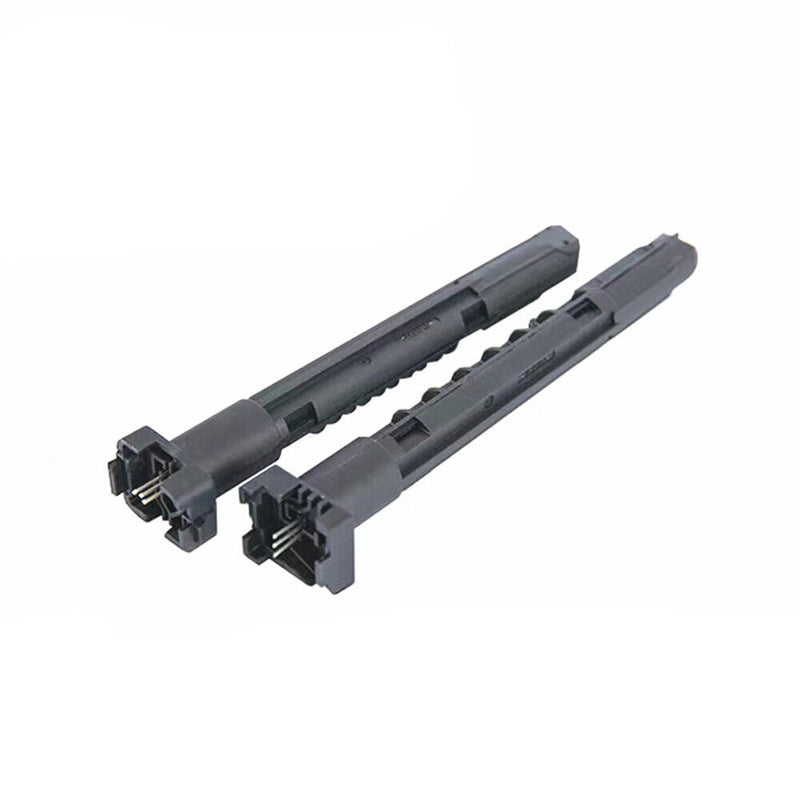

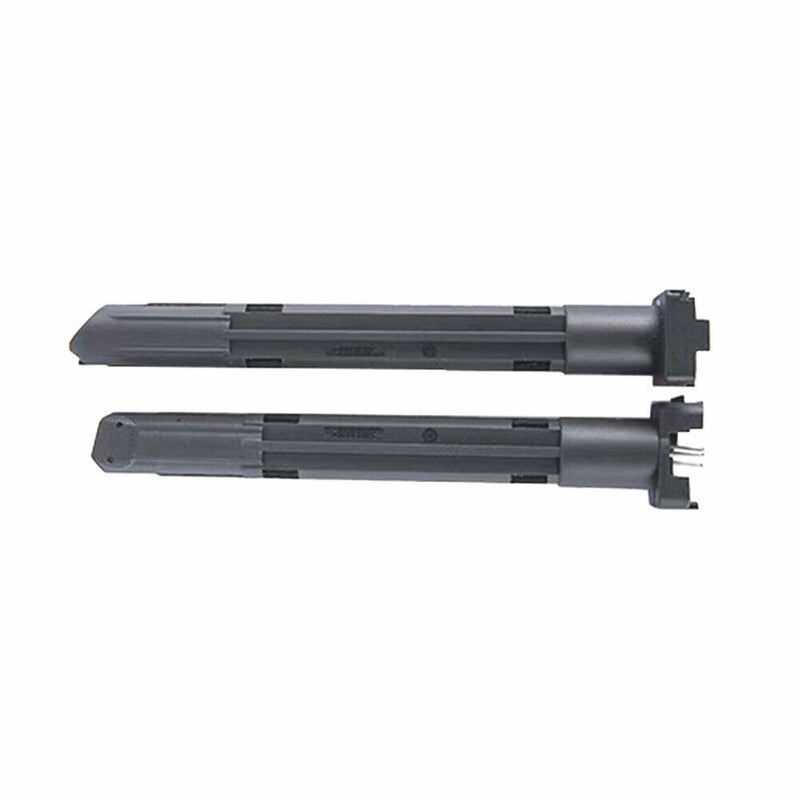

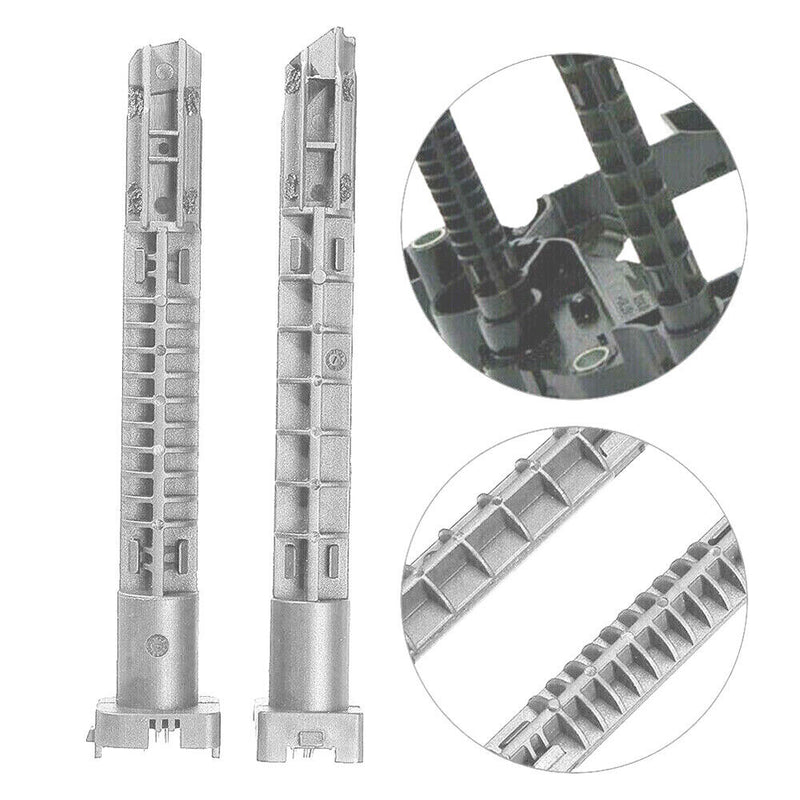

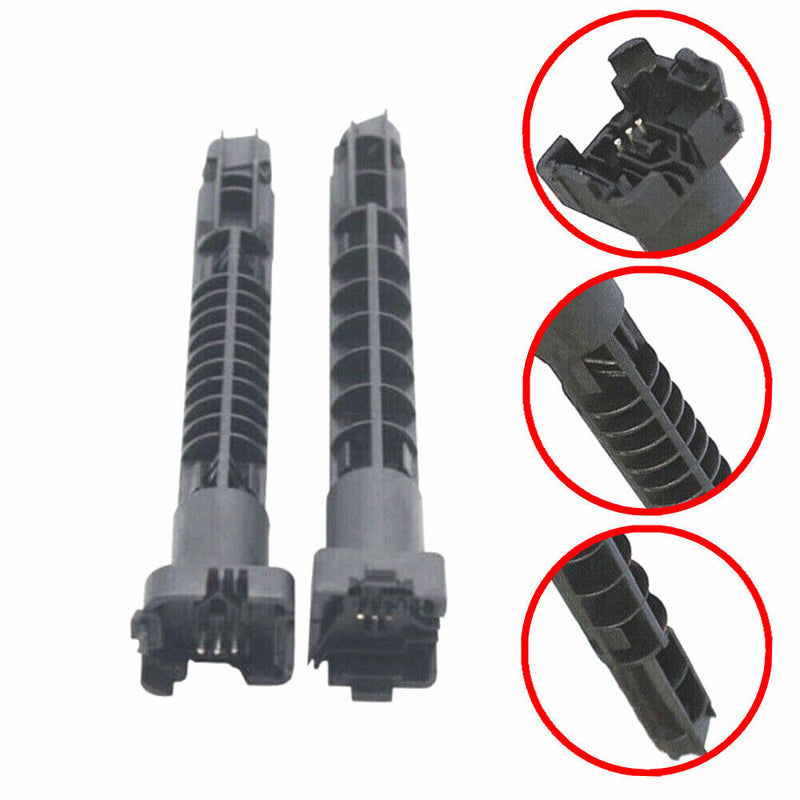

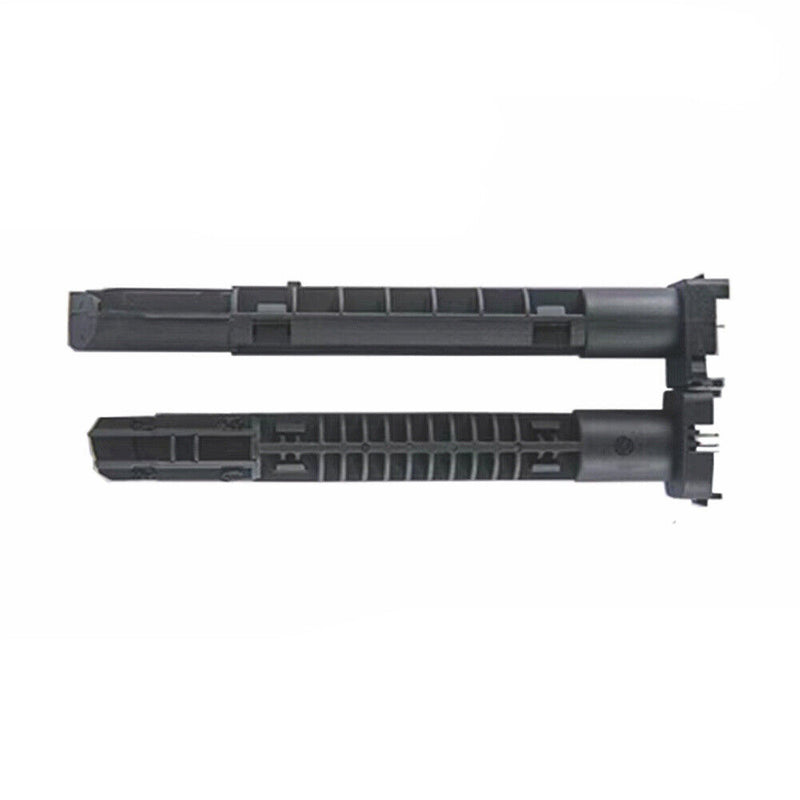

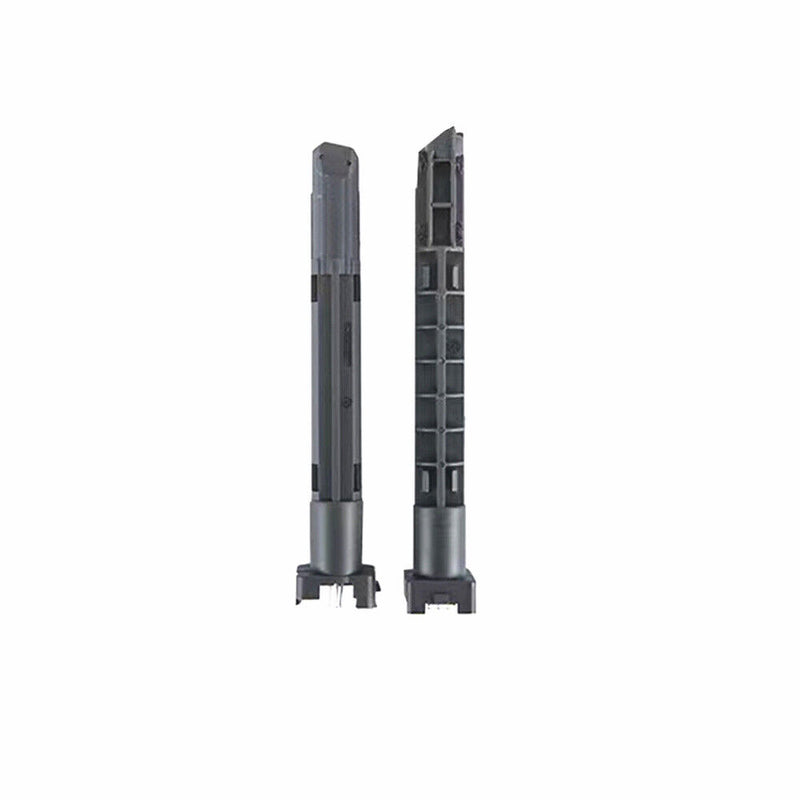

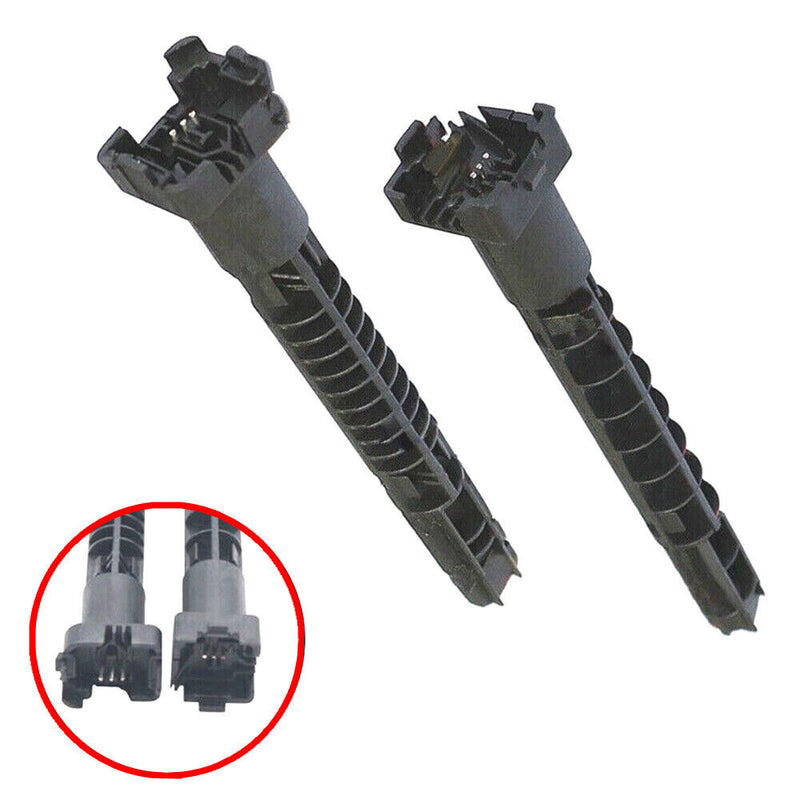

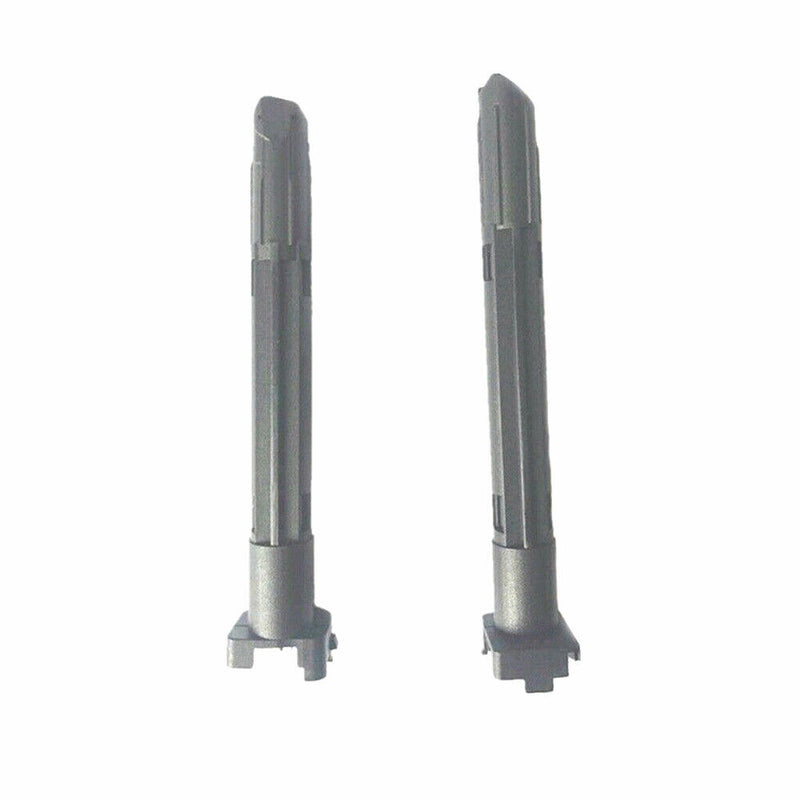

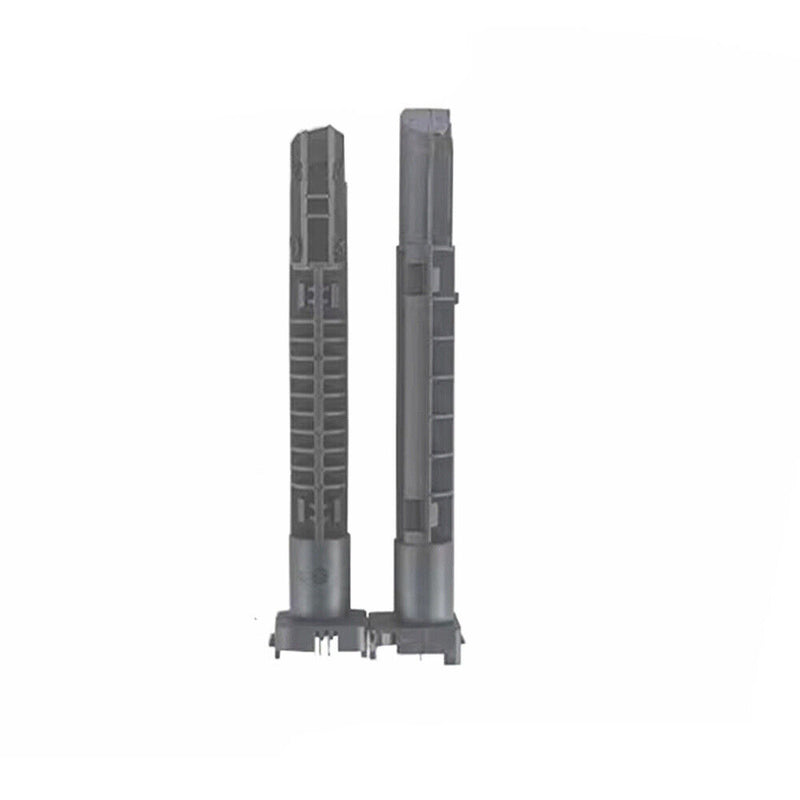

722.8 Transmission Control Y3/9b4 Y3/9b5 Sensors for Mercedes Benz W245 2005-11

SPECIFICATIONS
  Condition: 100% new
  Color:Black
  Material: Plastic & Metal
  Manufacturer Part Number: Y3/9b4,Y3/9b5
Item included:
 2 x 722.8 Module Sensor
Compatible With:
  Fit for Mercedes-Benz A-CLASS  2004-2011 CVT FWD  L4 1.5L 1.7L 2.0L 722.800,722.801 722.802,WFC-280 CVT Transmission
  Fit for Mercedes-Benz B-CLASS  2005-2011 CVT FWD  L4 1.5L 1.7L 2.0L 722.800,722.801 722.802,WFC-280 CVT Transmission
This Is Aftermarket Replacement Item But Not Genuine
Note:
  1) P 0722 - The rpm signal from component Y3 / 9b5 (CVT (continuously variable automatic transmission) output rpm sensor) is not available.
2)P 0730 - The gear ratio in continuously variable automatic transmission (CVT) is not permissible.
3) P 0793 - The rpm signal from component Y3 / 9b4 (CVT (continuously variable automatic transmission) secondary rpm sensor) is not available.
4) P 0896 - the continuous variable automatic transmission (CVT) adjust the gear ratio to an impermissible slow speed
Typical Troubles:
0657 The voltage supply of the control solenoid valves in the CVT is faulty
0705 Transmission Range Sensor Circuit Malfunction
0706 The signals of the range selector are implausible in comparison to the signals from the electronic selector lever module
0717 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is not available
0720 Speed Gradient nPrimGrd > nPrimGrdMax
0722 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is not available
0723 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is implausible
0730 The gear ratio in the CVT is not permissible
0739 Secondary RPM signal of component Y3/9B5 is not available
0746 An open circuit has occurred in the control loop for component Y3/9y1 (CVT) primary control solenoid valve
0766 An open circuit has occurred in the control loop for component Y3/9y4 (CVT) torque converter lockup clutch control solenoid valve
0776 An open circuit has occurred in the control loop for component Y3/9y2 (CVT) secondary control solenoid valve
0778 a short circuit has occurred in the control loop for component y3/9y2 (CVT) continuously variable automatic transmission secondary control solenoid valve.
0793 Intermediate Shaft Speed Sensor Circuit No Signal
0794 Intermediate Input Shaft Speed Sensor Signal
0796 An open circuit has occurred in the control loop for componentY3/9y3 (CVT) clutch control solenoid valve
0766 An open circuit has occurred in the control loop for componentY3/9y4 (CVT) torque converter lockup clutch control solenoid valve
0842 The output voltage of component pressure sensor is faulty. (Short circuit to ground)
1634 Component Y3/9n1 (CVT) is defective or the voltage supply is faulty (undervoltage)
1744 Torque Converter Clutch System Performance
2722 Impermissible closing of hydraulic brake 'Reverse gear' has occurred in the continuously variable automatic transmission (CVT) when selector lever 'N' was engaged.
2723 Impermissible opening of hydraulic brake “Reverse gear” has occurred in the CVT
2731 Impermissible closing of hydraulic clutch “forward gear” has occurred in the CVT when selector lever position “N” was engaged
2732 Impermissible opening of hydraulic clutch “forward gear” has occurred in the CVT
Feature:
1) According to the original factory specifications.
2) Perfect match for the original equipment.
3) Easy installation.
4) Stable characteristics, high reliability.
