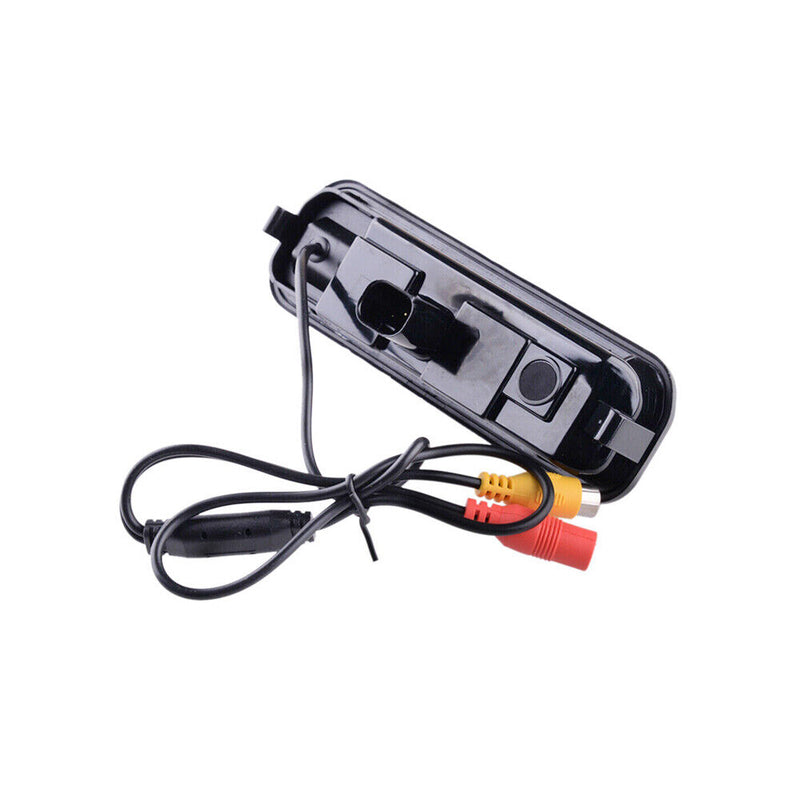

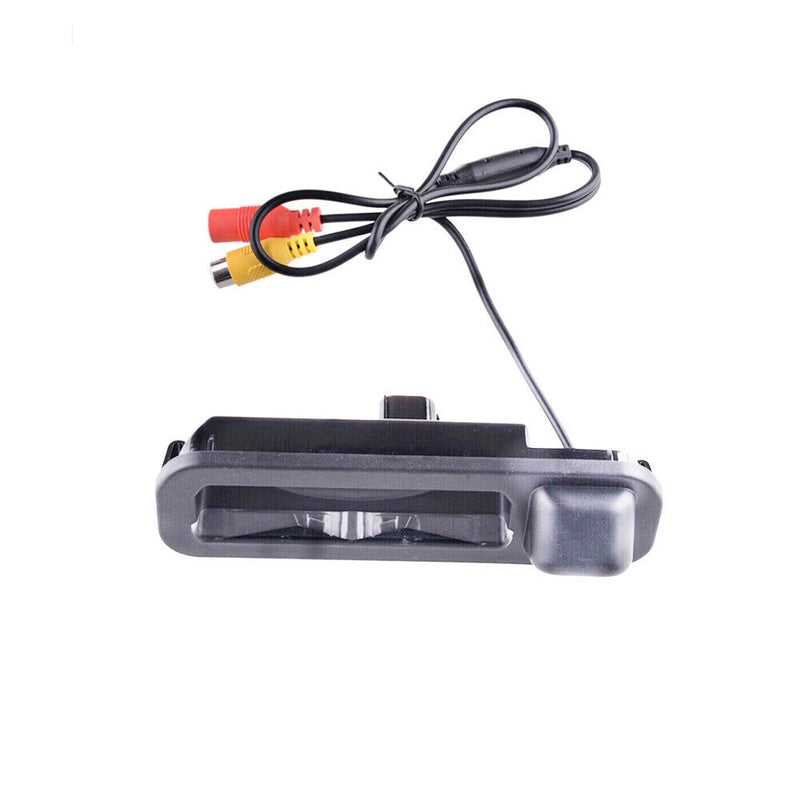

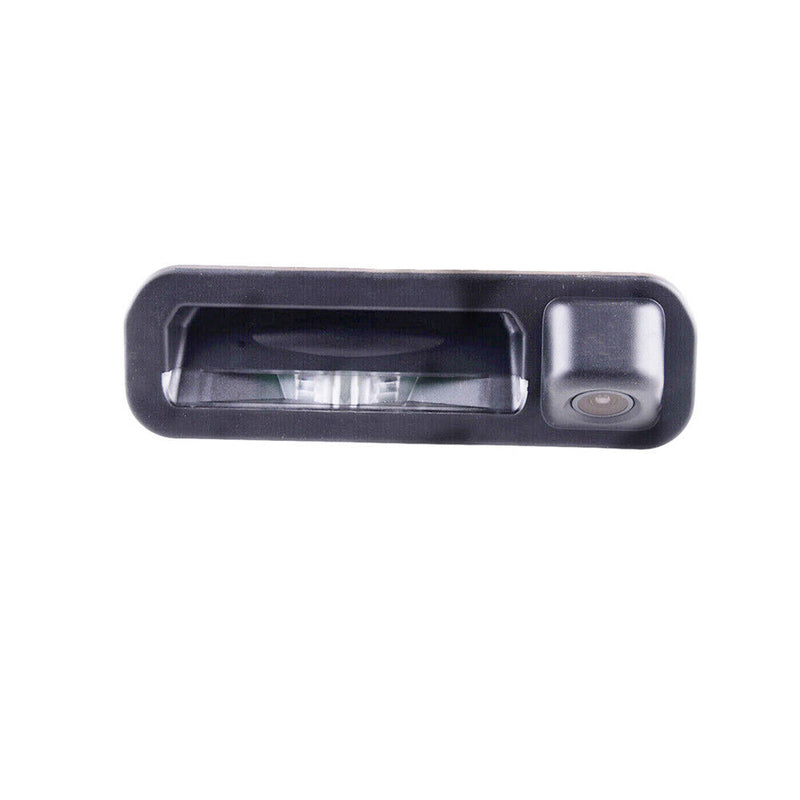

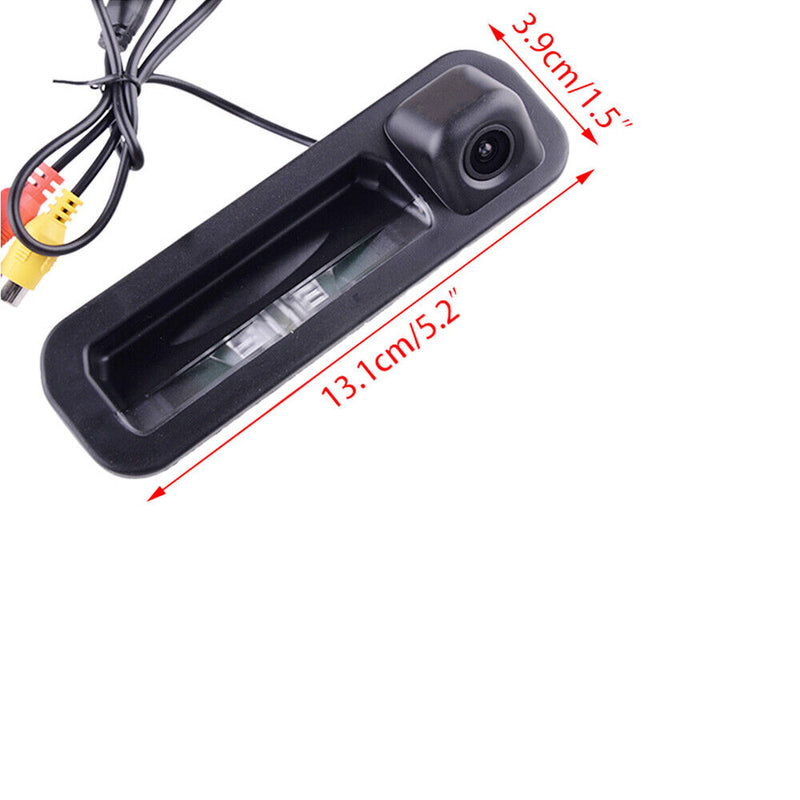

Trunk Handle Rear View Camera w/Built-in Light for Ford Focus Mk3 2012-2013

Specification:
  Condition: 100% new
  Color:Black
  Material: Plastic&Metal
  Image sensors:1/4" Color CCD
  TV System:NTSC
  Minimum illumination:<0.1 BLC: Auto
  White Balance:Auto
  Video Color:Colorful
  Effective Pixels :648*480
  Resolution :480 TV lines
  Video Output:1.0Vp-p,75Ω
  Electronic Shutter:1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S
  S/N Ratio:Better Than 48db
  Lens Angle:170 Degree
  Waterproof Class:IP 67
  Operation Temperature:-20°C+80°C RH95%
  Working Power (DCV):12V
  Current consumption:90mA Max

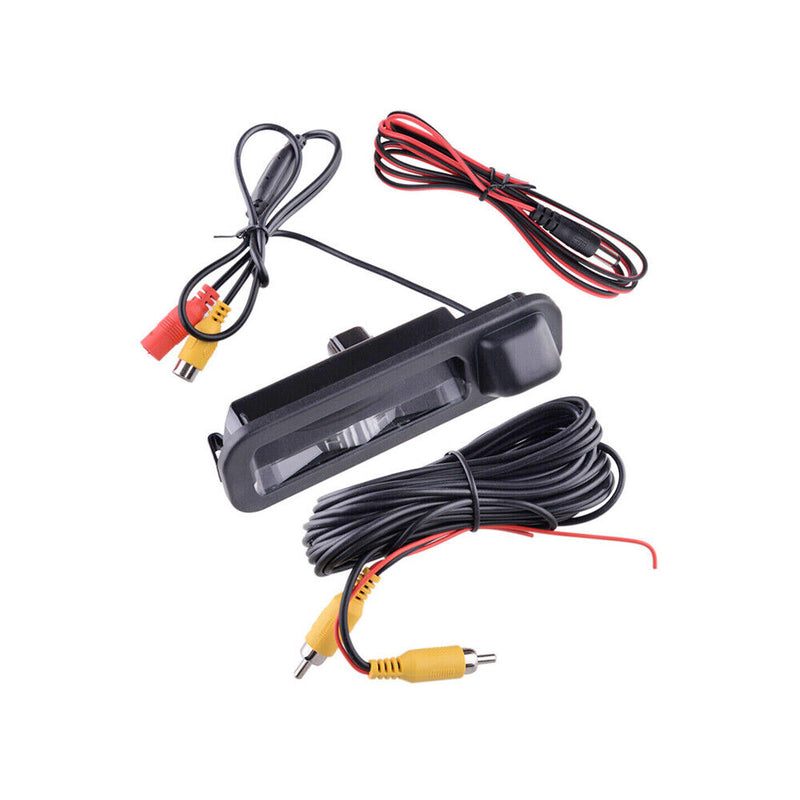

Item included:
  1 x Kit of Rear View Backup Camera
Compatible With:
  Fit for Ford Focus Mk3 2012-2013 With Built-in Light
This Is Aftermarket Replacement Item But Not Genuine

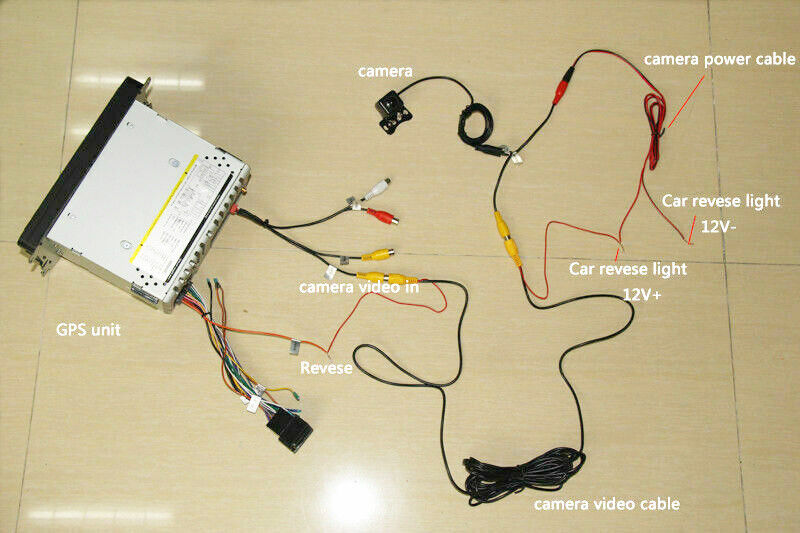

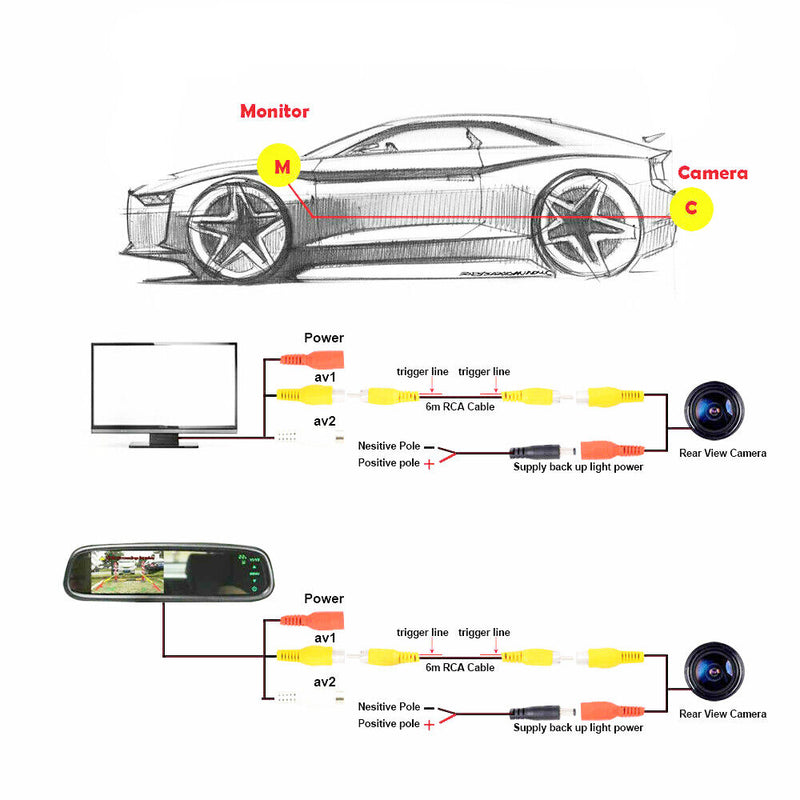

Installation:
1. Set the camera to the license plate of your car site
2. Adjust the camera lens to its best position.
3. Connect the power cord (red and black) to spotlight the power wires of your car.
4. Connect the video output (yellow) on the display.
On the television camera system rear view of a vehicle:
Typically, most monitors support both NTSC and PAL TV system. So it does not matter that the camera is PAL or NTSC system.
However, if you are not sure, please check that your monitor supports NTSC or PAL system. If your monitor supports only NTSC or PAL, please leave us a message that the TV system that you need in one business day after you make the payment. Or we will send the NTSC or PAL system camera at random.
Feature:
1) Night Sensors,CCD Camera,distance Guide Lines.
2) Waterproof, high definition display.
3) Offer a 120-160 degree wide angle view and a 420k high resolution display.
4) Make parking easy and compliment one of our stereos perfectly.
5) Other features include a 120 degree horizontal view and a reverse guard line function for being aware of your surroundings.
6) It will simply replace your existing boot handle. This camera has been designed to replicate the size and shape of the existing boot handle but with a discrete inbuilt camera.
7) Once the camera has been installed it will automatically power on as soon as the vehicle is put into reverse delivering a video signal to any monitor.
8) Our reversing cameras are equipped with a wide angle lens making parking safe and easy by giving a clear view of the road behind.
9) Guide lines help you easily judge the distance between objects and your vehicle. Specially manufactured to replace the existing number plate light, allowing for easy installation without the need for drilling or modification.
